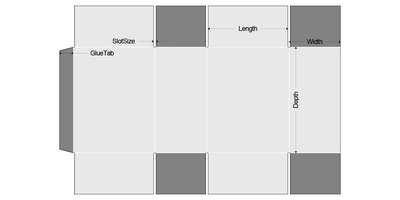

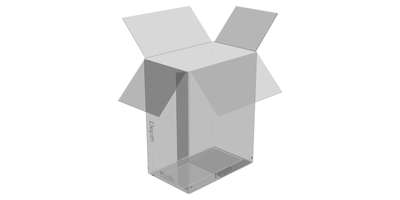

Design: C017_IFM Glue Tab Left

Group: Slotted

Price: $ 2.00

Parameters

You can customize the item's parameters. The minimum and maximum theoretical values are shown, if it shows -10000 or +10000, the theoretical minimum and maximum values for that parameter are not yet defined.

Note: Allowance is the Material Thickness.

Dimension units
Parameters
1/64 < < 3/4 inch
1/32 < < 200 inch
1/32 < < 200 inch
1/32 < < 200 inch
1/4 < < 3 inch
1/8 < < 1/2 inch
