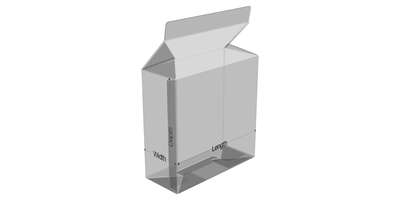

Design: I009_T-LockBottomCarton (Box44A)

Group: Snap-lock bottoms (SLB)

Price: $ 2.00

Parameters

You can customize the item's parameters. The minimum and maximum theoretical values are shown, if it shows -10000 or +10000, the theoretical minimum and maximum values for that parameter are not yet defined.

Note: Allowance is the Material Thickness.

Dimension units

	inch
	mm

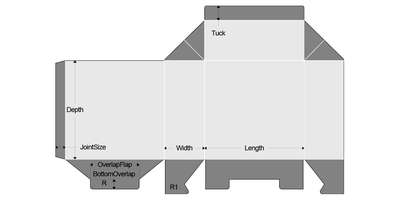

Parameters

Custom title
Allowance	1/64	<		<	3/4	inch
Length	1/32	<		<	200	inch
Width	1/32	<		<	200	inch
Depth	1/32	<		<	200	inch
BottomOverlap	1/4	<		<	1 1/2	inch
JointSize	1/4	<		<	3	inch
OverlapFlap	1/32	<		<	200	inch
R	1/32	<		<	2	inch
R1	1/32	<		<	2	inch
Tuck	1/4	<		<	4	inch
