A01.30.00.03 - View 1

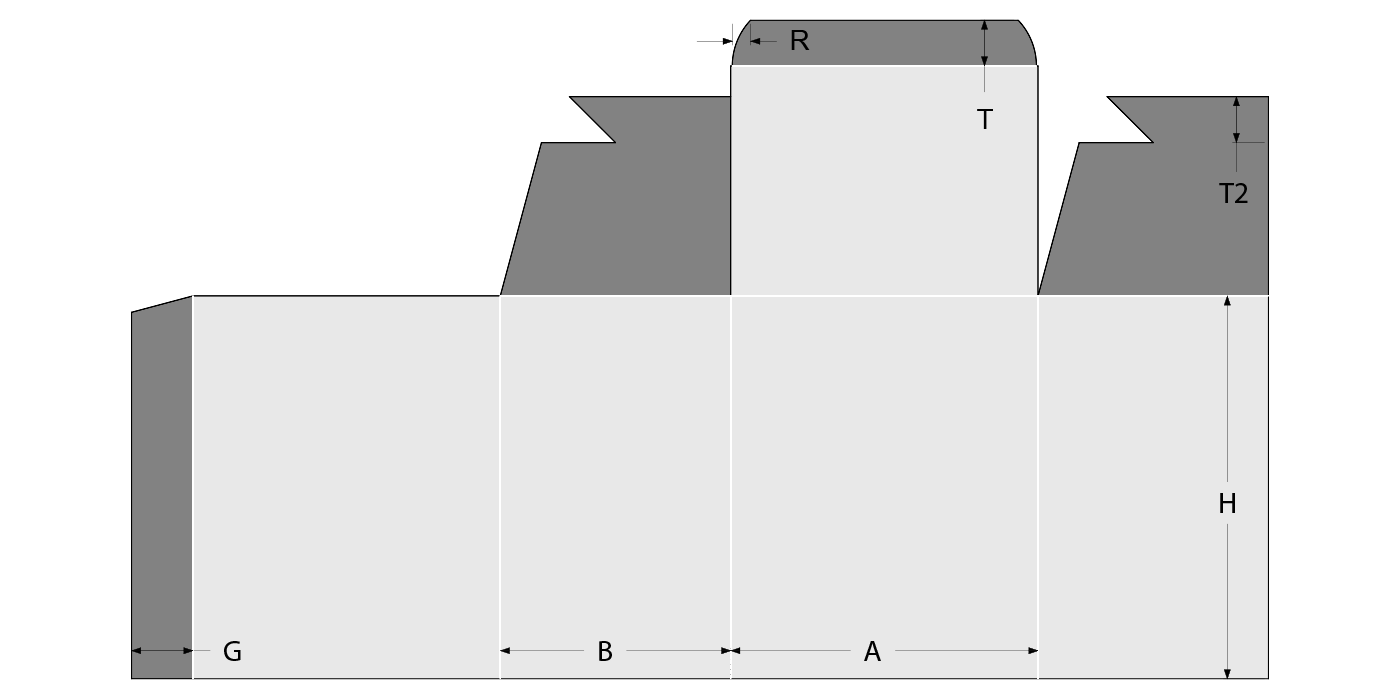

A01.30.00.03 - View 2

A01.30.00.03

European Carton Makers Association

$2.00

Custom Title

Units

Metric (mm) Imperial (in)

A

mm

Range: 1–5000 mm

Allowance

mm

Range: 0,5–15 mm

L

mm

Range: -10000–10000 mm

B

mm

Range: 1–5000 mm

G

mm

Range: 5–75 mm

H

mm

Range: 1–5000 mm

R

mm

Range: 1–50 mm

T

mm

Range: -10000–10000 mm

T2

mm

Range: -10000–10000 mm

Sign in to Order

Output Files

Each order generates 7 production-ready files:

PDF — preview and print
DXF / DWG — CAD import
CF2 — Common File Format 2
HPG — plotter output
DDS — design data sheet
TAB — tabular data
